信號鏈
零漂移高精度運算放大器

型號：

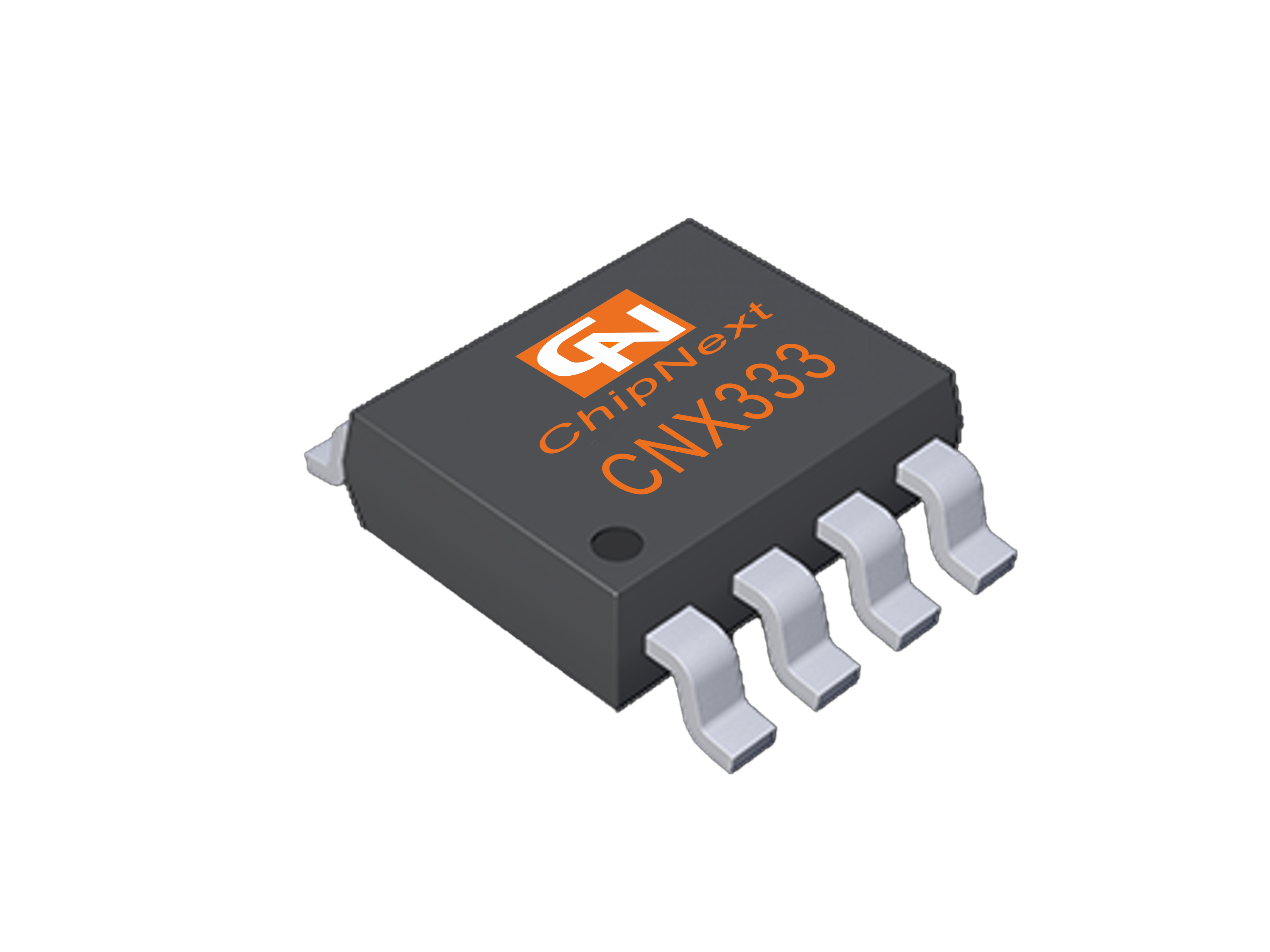

CN2333SP8 資料下載

The CN333, CN2333, CN4333 families of products are CMOS operational amplifier offering very low offset voltage (2 μV typical) and near-zero drift over time and temperature. They have high-impedance inputs that have a common-mode range 100 mV beyond the rails, and rail-to-rail output that swings within 50 mV of the rails. Single or dual supplies as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V) can be used. These devices are optimized for low-voltage, single-supply operation. The op-amps provide 350KHz bandwidth at a low current consumption of 15uA per amplifier, offering excellent CMRR without the crossover associated with traditional complementary input stages., making this device an excellent choice for sensor interface, active filter, low voltage or battery operated systems.

  • 概述

    CN333, CN2333, CN4333系列是一款零漂移、高精度運算放大器，其輸入失調電壓低至2uV, 溫漂系數低至0.02uV/°C,增益帶寬積350KHz，功耗低至15uA/通道，電壓范圍1.8V至5.5V，軌到軌輸入輸出。 CN333, CN2333, CN4333系列零漂移高精度運放非常適合醫療、精密儀器、高精度傳感器等高精度需求場合，可在-40°C至+125°C的全溫度范圍內使用。

  • 特性
    · 溫漂系數：0.02uV/°C
    · 低輸入失調電壓：Vos(Typ) = ±2uV
    · 增益帶寬積：350KHz
    · 工作電壓范圍：+1.8V~+5.5V
    · 壓擺率SR: 0.12V/us
    · 功耗：15uA
    · 溫度范圍：-40°C至+125°C
    · 軌到軌輸入輸出
    · 支持熱保護關斷功能
    · SOP8
  • 應用
    · 精密醫療設備
    · 精密儀器儀表
    · 高精度傳感器
